Artech Portwell WADE-8041-1G Anakart

Artech Portwell WADE-8041-1G Anakart

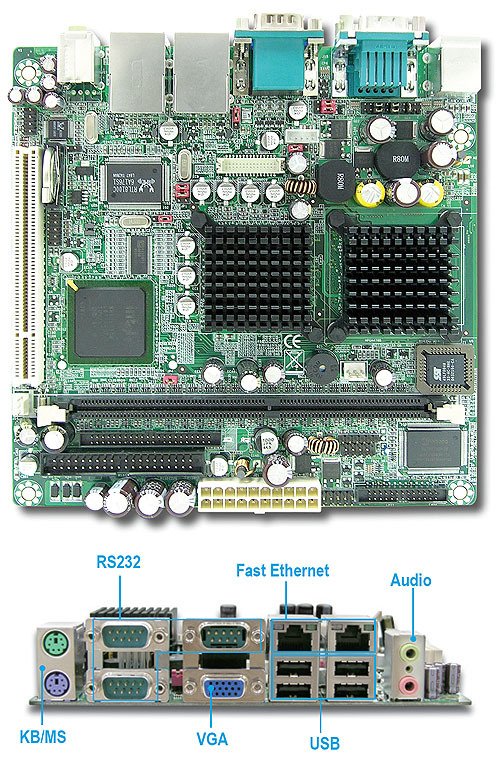

The WADE- 8041 is a cost- effective Mini- ITX embedded board for applications that need low power consumption. Built with Ultra Low Voltage Intel® Celeron® M processors, WADE- 8041 generates the computing power necessary for most embedded applications. Its dual video feature also enables the use of two displays simultaneously. Its four COM and Six USB ports provide an immediate interface to a range of peripherals.

FEATURES

• Ultra Low Voltage Intel®  Celeron®  M processors
• Max. 1GB, DDR SDRAM
• Dual Display by VGA/LVDS
• AC97 Audio interface
• Two 10/100Mbps LANs and one PCI slot
• Max. four COM and six USB 2.0 ports

WADE-8041-600

Intel®  Celeron®  M 600MHz(512KB cache) Based Mini-ITX Board with VGA, LVDS, Audio, Dual LANS and Six USB 2.0 ports

Intel®  Celeron®  M processors Based Mini-ITX Board with VGA, LVDS, Audio, Dual LANS and Six USB 2.0 ports

PEP-581R/582R

One/Two slots PCI riser card

WADE-8041-1G

Intel® Celeron® M 1GHz(zero cache) Based Mini-ITX Board with VGA, LVDS, Audio, Dual LANS and Six USB 2.0 ports

B6901940

1 port COM cable with bracket

B6901950

2 ports USB cable with bracket

• Specifications are subject to change without notice.
• Pentium®  4, Pentium® III, Pentium® II and Celeron®  are registered trademarks of Intel®  Corporation.
• Xeon™ is a trademark of Intel®  Corporation.
• Other trademarks, logos, brands and company names are the property of their respective owners.
