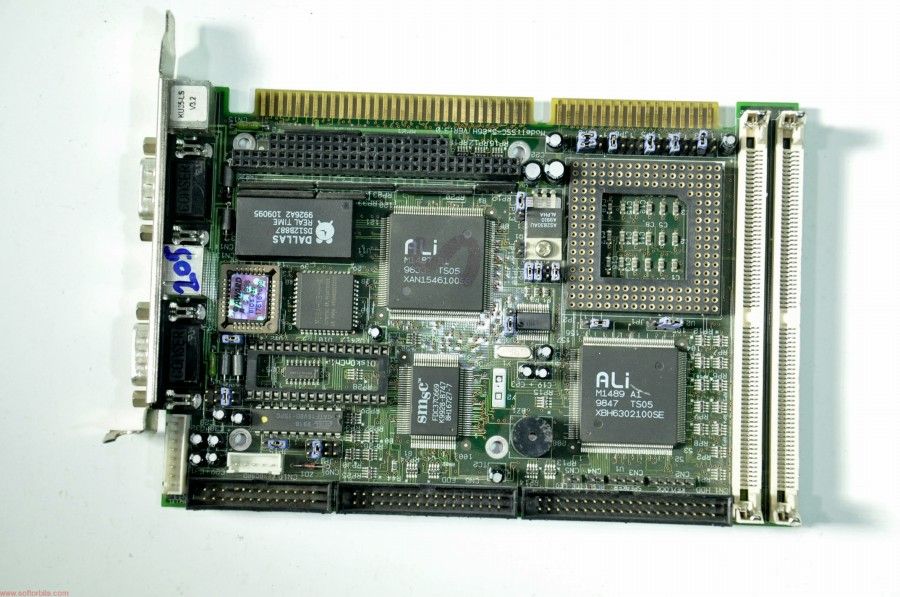

TEKNOR SSC-5x86H Ver.3.0 Super 5x86H Half-sized Single Board Computer
|
CPU |
Intel™, AMD™, Cyrix™, Ti™, SGS™ 486SX2/DX4 or 5x86 CPU |
|
Cache |
Up to 128KB SDRAM |
|
Chipset |
ALI-M1487/M1489 |
|
Architecture |
Watchdog Timer |
|
On-Board Interface |
IDE, FD Controller, 2 Serial port, PCI-104, Parallel port, Mouse/KBD Connector, 2x72-pin SIMM sockets |
|
Memory |
Up to 64MB DRAM (EDO, DRAM) |
|
32-pin socket / 2 MB model available (up to 24MB) |
|
|
Bios |
27C010 EPROM with Award BIOS |
|
Speaker |
Internal buzzer & external speaker connector |
|
Serial Port |
Two 16550 UARTs RS-232/422/485 |
|
Temperature |
Operating: 0~55°C Storage -40~75°C Humidity: 10%-95% (non-condensing) |
|
Dimension (LxW) |
6.77" x 4.73" Half-size SBC |
Detaylı Bilgi için : http://www.voxtechnologies.com/pdf/icp/ssc-5x86h-verc.pdf
| Rem Tipi | : | EDO |
| İşlemci Soket Tipi | : | SANAYİ TİPİ |
| Isa Slot | : | YOK |
