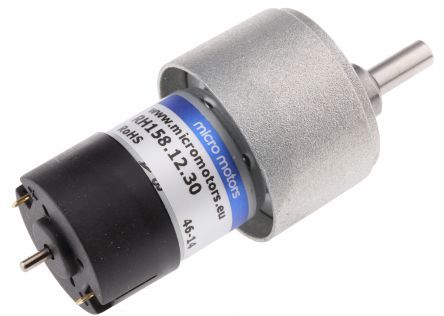

Spur Gear Motor RH158-12-30
Technical Data - Series RH158 - Spur Gear Motor - Diameter 39.6mm
http://www.dcgearedmotors.co.uk/pdfs/RH%20158.pdf
Specifications
AttributeValue
Output Speed140 rpm
Supply Voltage12 V dc
Maximum Output Torque20 Ncm
Shaft Diameter6mm
Power Rating8 W
Gearhead TypeSpur
Length64mm
Width39.6mm
Current Rating660 mA
Core ConstructionIron Core
| Type | Nominal Voltage (V) |
L (mm) |
Ratio To: 1 |
Max Torque (Ncm) |
Speed No Load (rpm) |
Speed at Max Torque (rpm) |
Current No Load (mA) |
Current at Max Torque (mA) |
| RH158.12.15 RH158.24.15 |
12 24 |
64 | 14.14 | 10 | 440 | 300 | <140 <70 |
660 330 |
| RH158.12.30 RH158.24.30 |
12 24 |
64 | 29.75 | 20 | 210 | 140 | <140 <70 |
660 330 |
| RH158.12.75 RH158.24.75 |
12 24 |
66.5 | 76.84 | 50 | 81 | 55 | <140 <70 |
680 340 |
| RH158.12.100 RH158.24.100 |
12 24 |
66.5 | 94.37 | 60 | 66 | 45 | <140 <70 |
680 340 |
| RH158.12.200 RH158.24.200 |
12 24 |
69 | 198.5 | 100 | 33 | 23 | <140 <70 |
580 290 |
| RH158.12.250 RH158.24.250 |
12 24 |
69 | 243.8 | 100 | 26 | 21 | <140 <70 |
500 250 |
| RH158.12.510 RH158.24.510 |
12 24 |
72 | 512.85 | 100 | 12 | 10.5 | <140 <70 |
300 150 |
| RH158.12.630 RH158.24.630 |
12 24 |
72 | 629.82 | 100 | 10 | 9 | <140 <70 |
270 135 |
