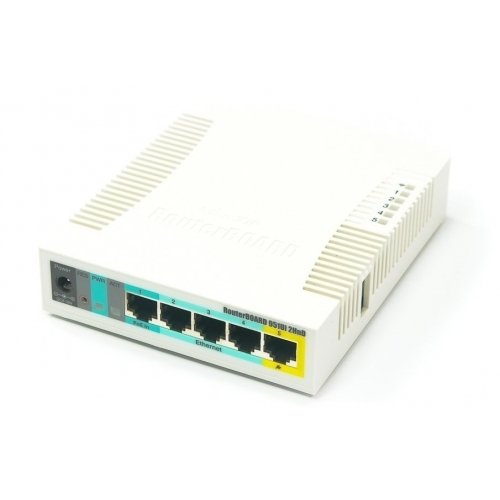

Mikrotik RB951Ui-2HnD Router - Firewall - Loglama
| Details | |
|---|---|
| Product code | RB951Ui-2HnD |
| CPU nominal frequency | 600 MHz |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| 10/100 Ethernet ports | 5 |
| Wireless chip model | AR9344 |
| Wireless standards | 802.11b/g/n |
| Number of USB ports | 1 |
| Power Jack | 1 |
| PoE out | Yes |
| Supported input voltage | 7 V - 31 V |
| PoE in | Yes |
| Dimensions | 113x138x29mm |
| Operating System | RouterOS |
| Tested ambient temperature | -20C +50C |
| License level | 4 |
| Antenna gain DBI | 2.5 |
| CPU | AR9344 |
| Max Power consumption | Up to 7W |
| USB slot type | USB type A |
| Number of chains | 2 |
| Storage type | NAND |
| Storage size | 128 MB |
Wireless specifications
| 2.4 GHz | |||
|---|---|---|---|
| Transmit power (dBm) | Receive Sensitivity | Transmit power (mW) | |
| 6MBit/s | 30 | -96 | 1000 |
| 54MBit/s | 25 | -80 | 316 |
| MCS0 | 30 | -96 | 1000 |
| MCS7 | 23 | -78 | 200 |
wireless parameters may be limited in software, depending on your local regulatory limitations
Included parts
Ethernet test results
| RB951Ui-2HnD | AR9344 100M all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 40.0 | 485.8 | 116.5 | 477.2 | 269.6 | 138.0 |
| Bridging | 25 bridge filter rules | 40.0 | 485.8 | 86.0 | 352.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 40.0 | 485.8 | 116.5 | 477.2 | 226.9 | 116.2 |
| Routing | 25 simple queues | 40.0 | 485.8 | 103.9 | 425.6 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 40.0 | 485.8 | 59.6 | 244.1 | 60.5 | 31.0 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
