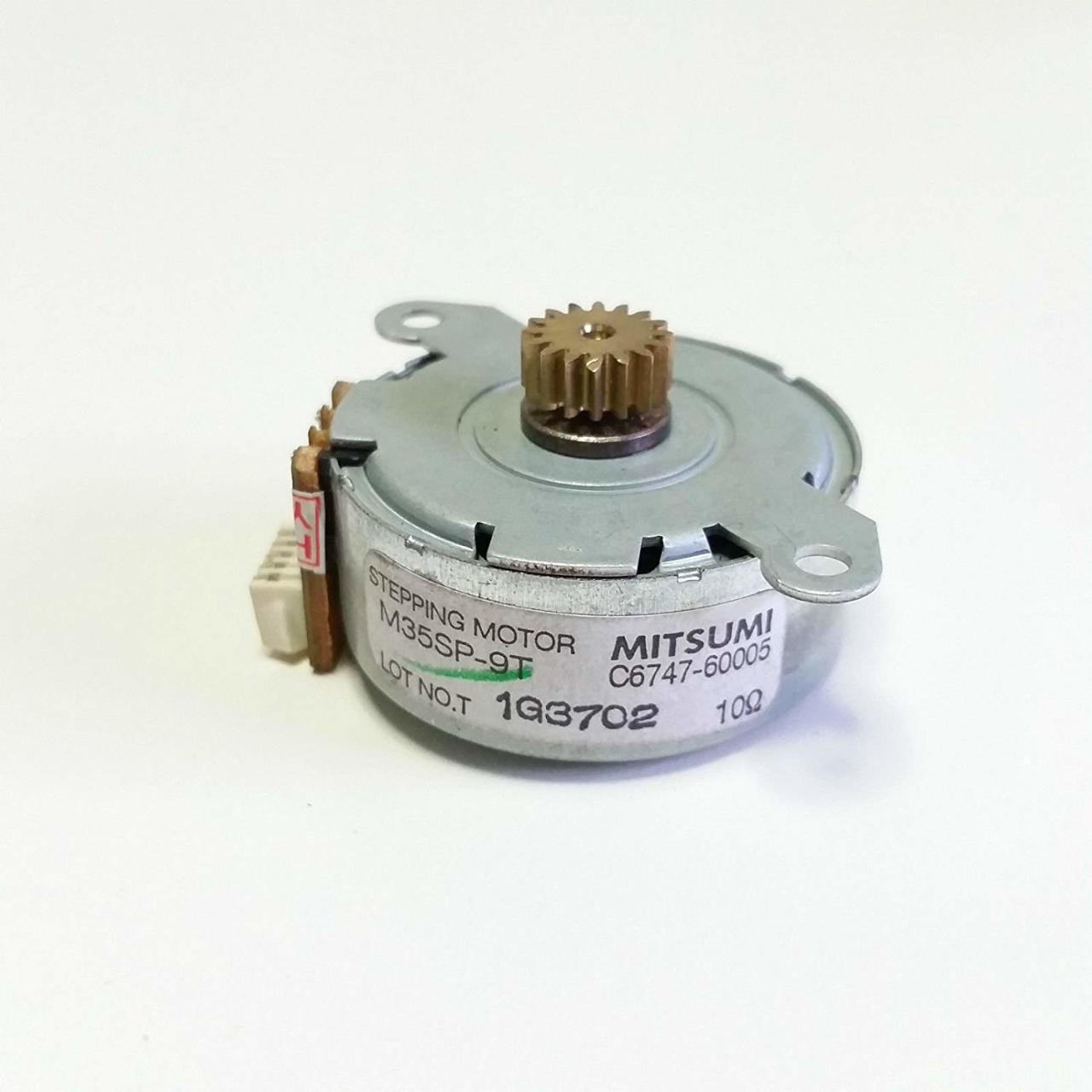

M35SP-9T Stepping Motors (Ø35) c6747-60005
Kablosu üzerinde yoktur , resimdeki şekliyledir.
SPECIFICATIONS]
Item
M35SP-9
M35SP-10N
Rated Voltage
DC 24V
Working Voltage
DC 21.6~26.4V
Rated Current/Phase
400mA(PEAK)
600mA(PEAK)
Coil DC Resistance
13.5Ω/phase±10%
13Ω/phase±10%
Step Angle
7.5º/step
3.75º/step
Drive Method
Constant Current
Excitation Method
2-2 Phase excitation(Unipolar driving)
Insulation Class
Class E insulation
Holding Torque
33mN·m
35mN·m
Pull-out Torque
21.3mN·m/1,000pps
26.3mN·m/1,000pps
Pull-in Torque
26.1mN·m/300pps
29mN·m/600pps
Max. Pull-out Pulse Rate
1,790pps
1,600pps
Max. Pull-in Pulse Rate
630pps
1,200pps
SPECIFICATIONS]
| Item | M35SP-9 | M35SP-10N |
|---|---|---|
| Rated Voltage | DC 24V | |
| Working Voltage | DC 21.6~26.4V | |
| Rated Current/Phase | 400mA(PEAK) | 600mA(PEAK) |
| Coil DC Resistance | 13.5Ω/phase±10% | 13Ω/phase±10% |
| Step Angle | 7.5º/step | 3.75º/step |
| Drive Method | Constant Current | |
| Excitation Method | 2-2 Phase excitation(Unipolar driving) | |
| Insulation Class | Class E insulation | |
| Holding Torque | 33mN·m | 35mN·m |
| Pull-out Torque | 21.3mN·m/1,000pps | 26.3mN·m/1,000pps |
| Pull-in Torque | 26.1mN·m/300pps | 29mN·m/600pps |
| Max. Pull-out Pulse Rate | 1,790pps | 1,600pps |
| Max. Pull-in Pulse Rate | 630pps | 1,200pps |
