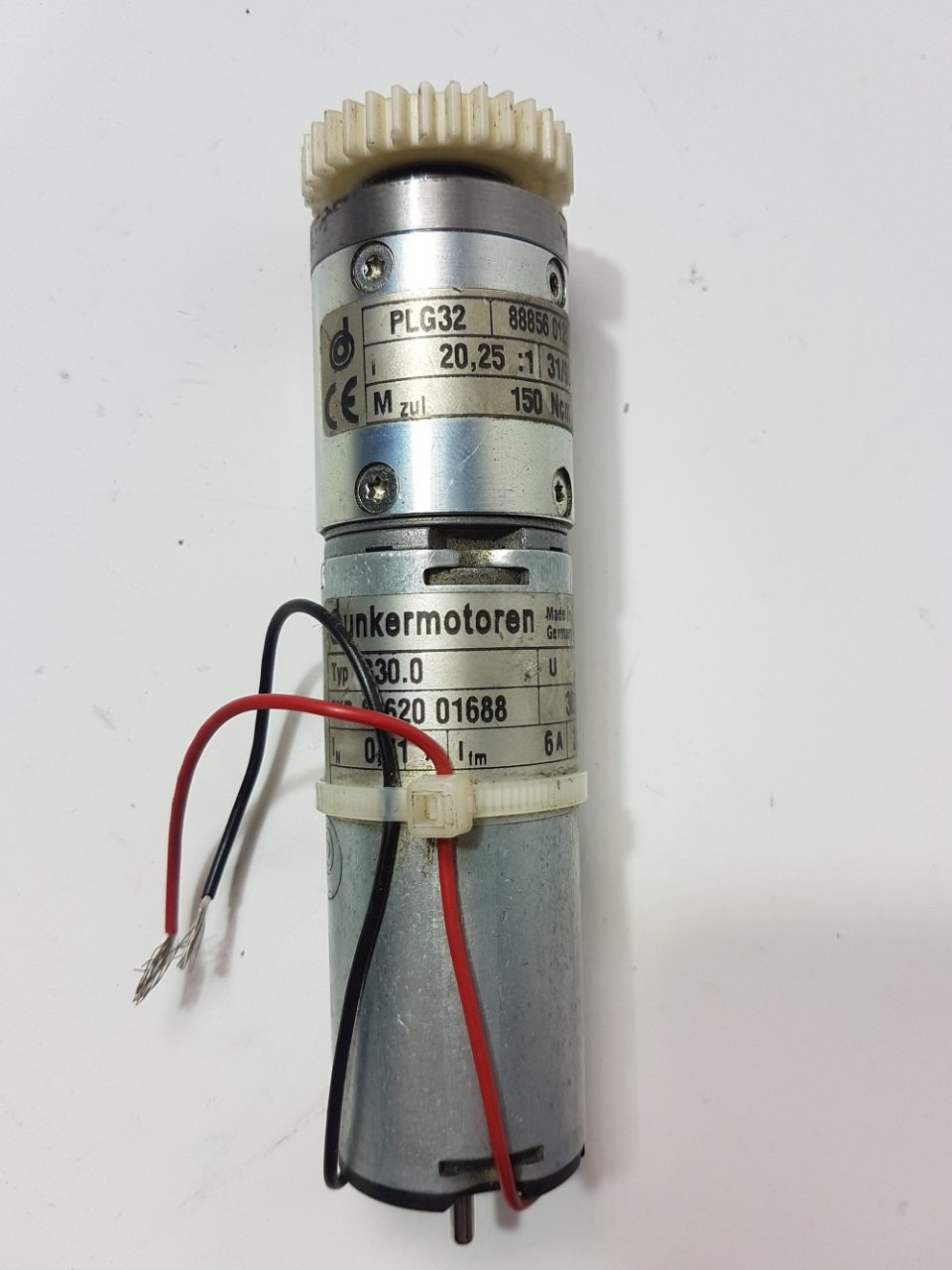

DunkerMotoren Permanent Magnet DC-Motor G 30.0 Planetary Gearbox PLG 32
Type:planetary
Shaft orientation:coaxial
Performance:high-power
Other characteristics:compact, for electrical drives
Torque:0.4 Nm, 1.5 Nm, 4 Nm (0.295 ft.lb)
https://www.dunkermotoren.com/uploads/tx_products/downloads/MKS/plg-32-8885602013.pdf
Gearbox ratio400 : 1
Number of stages3
Nominal output torqueNcm400
Max. efficiency%73
Max. axial loadN30
Max. radial loadN100
Nominal voltage
V
24
Nominal current
A
0.7
Nominal torque
Ncm
3
Nominal speed
rpm
3030
Friction torque at no load
Ncm
0.5
Peak stall torque
Ncm
12.1
No load speed
rpm
4260
Maximum output power
W
13.5
Nominal power
W
9.5
Torque constant
Ncm/A
4.97
Terminal resistance
Ohm
9.4
Terminal inductance
mH
8.5
Starting current
A
2.5
No load current
A
0.13
Demagnetisation current
A
6
Rotor inertia
gcm^2
41.9
Weight
kg
0.24
DunkerMotoren Permanent Magnet DC-Motor G 30.0 Planetary Gearbox PLG 32
Type:planetary
Shaft orientation:coaxial
Performance:high-power
Other characteristics:compact, for electrical drives
Torque:0.4 Nm, 1.5 Nm, 4 Nm (0.295 ft.lb)
https://www.dunkermotoren.com/uploads/tx_products/downloads/MKS/plg-32-8885602013.pdf
Gearbox ratio400 : 1
Number of stages3
Nominal output torqueNcm400
Max. efficiency%73
Max. axial loadN30
Max. radial loadN100
| Nominal voltage | V | 24 |
| Nominal current | A | 0.7 |
| Nominal torque | Ncm | 3 |
| Nominal speed | rpm | 3030 |
| Friction torque at no load | Ncm | 0.5 |
| Peak stall torque | Ncm | 12.1 |
| No load speed | rpm | 4260 |
| Maximum output power | W | 13.5 |
| Nominal power | W | 9.5 |
| Torque constant | Ncm/A | 4.97 |
| Terminal resistance | Ohm | 9.4 |
| Terminal inductance | mH | 8.5 |
| Starting current | A | 2.5 |
| No load current | A | 0.13 |
| Demagnetisation current | A | 6 |
| Rotor inertia | gcm^2 | 41.9 |
| Weight | kg | 0.24 |
