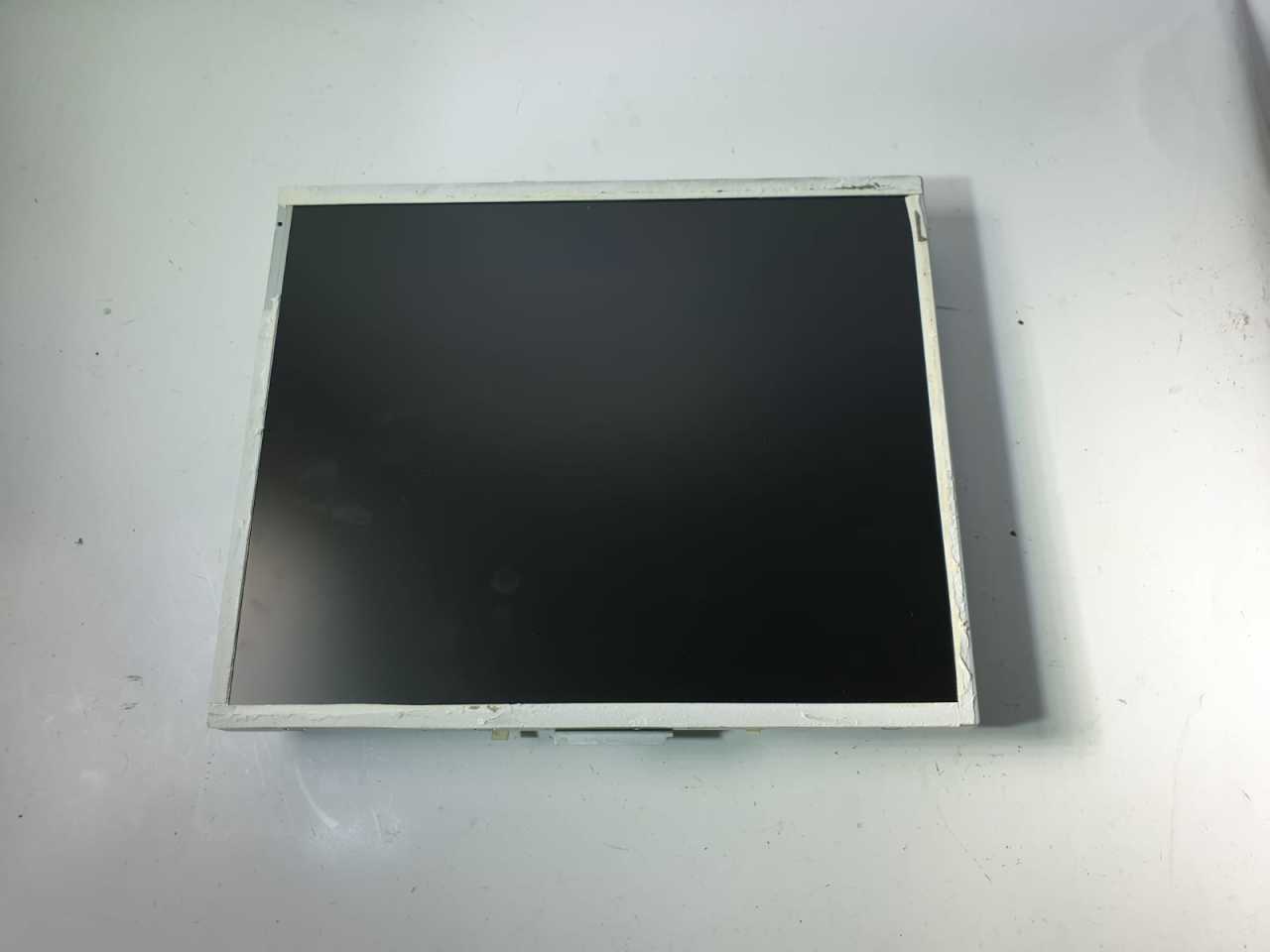

BOE HT170E01-300 17'' Kiosk Lcd
Dış kapları olmayan 17" kiosk ekranlarıdır. Direkt kioska monte edip kullanabilirsiniz.
| Part No. |
HT170E01-300 |
||
| Brand | BOE | ||
| Type | TFT | ||
| Size(inches) | 17 | ||
| Color | 16.2M | ||
| Resolution | 1280 X 1024 (SXGA) | ||
| Nits(cd2/M) | 300 | ||
| Contrast | 800 : 1 | ||
| View Angle(L/R/U/D) | 80 x 80 x 80 x 80 | ||
| Rep.Time(ms) | 18.5 | ||
| Dimen(W/H/D)(mm) | 358.5 x 296.5 x 17 | ||
| Active(W/H)(mm) | 337.92 x 270.336 | ||
| Dismode | Normally White | ||
| Dot Pitch(mm) | 0.264 x 0.264 | ||
| W:L | 5 : 4 | ||
| Power Consum(W) | 22.1 | ||
| Weight(g) | 2200 | ||
| Interface | LVDS | ||
| Backlight | 4 CCFL | ||
| B/L Life(hour) | 50000 | ||
| Input Vol(V) | 5 | ||
| Work Temp(℃) | 0 ~ 50 | ||
| Storage Temp(℃) | -50 ~ 60 | ||
| Application | Game Industry | ||
| Surface Treatment | Non Glare | ||
| PSWG | - | ||
| RoHS | YES | ||
| Pin Assignment | 30 | ||
