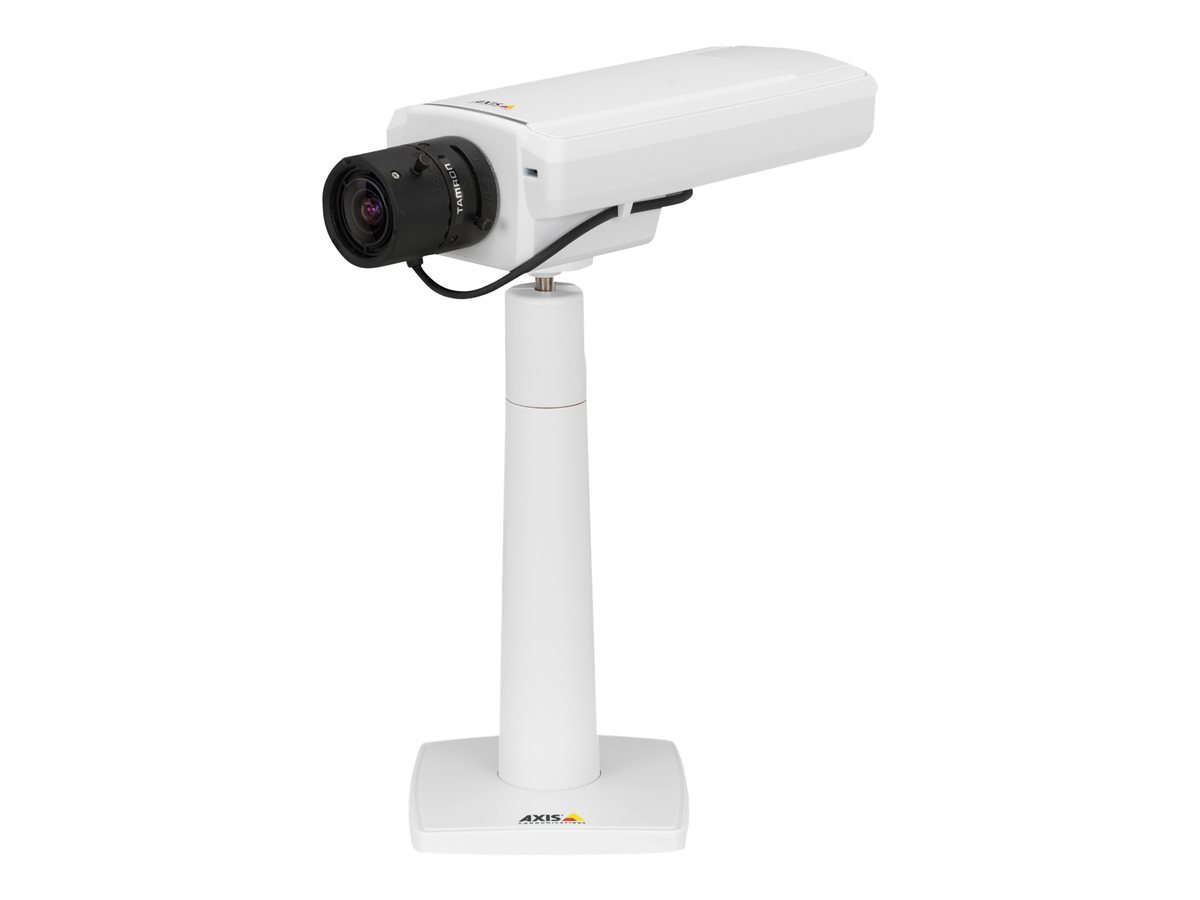

AXIS P1343 Network Camera

AXIS P1343

SVGA, day/night, fixed camera with varifocal 3-8 mm DC-iris lens and remote back focus. Multiple, individually configurable H.264 and Motion JPEG streams; max SVGA resolution at 30 fps. WDR. Video motion detection and active tampering alarm. Two-way audio with built-in microphone and audio detection. I/O for alarm/event handling, SD/SDHC memory card slot for optional local video storage. Power over Ethernet. Power supply not included.AXIS P1343 network camera provides superb video quality in SVGA resolution, wide dynamic range and multiple H.264 and Motion JPEG streams, in full frame rate or individually configured. The camera features day/night functionality, digital PTZ and easy installation with remote back focus, focus assistant, pixel counter and Power over Ethernet. Offers two-way audio and an SD/SDHC card slot for optional local storage. Video intelligence includes video motion detection, audio detection and active tampering alarm.

Features:

Superb image quality with SVGA resolution

Day/night functionality

Multiple H.264 streams

Digital PTZ

Easy installation with remote back focus

Local storage

Intelligent capabilities such as enhanced video motion detection, audio detection and detection of camera tampering attempts like blocking or spray-painting

Power over Ethernet (IEEE 802.3af), eliminating the need for power cables and reducing installation costs

Two-way audio support with enhanced audio quality

Advanced security and network management features such as HTTPS encryption with preserved performance, IPv6 and Quality of Service (QoS)

Robust fixed day and night camera

AXIS P1343 network camera is a fixed day and night camera with superb image quality, delivering excellent H.264 performance in a robust design. Superior video quality is provided with progressive scan in multiple individual H.264 streams, as well as motion JPEG streams. The focus assistant, remote back focus and pixel counter features simplifies installation.

Demanding video surveillance applications

AXIS P1343 offers high-performing video surveillance in both indoor and outdoor applications. It is perfect for securing locations such as governmental and industrial buildings, retail stores, airports, railway stations, schools and university campuses.

TECHNICAL SPECIFICATIONS

Type

Outdoor Day/Night

Compression

MJPEG-H264

Resolution max

800 x 600

Frame Rate 30 fps

Horizontal angle of view 25° - 59°

Light sensitivity 0.3 lx - 0.05 lx

Focus lenght 3 - 8 mm

Audio IN Build-in micro + 3.5 phone jack

Audio OUT 3.5 phone jack

Local storage SD/SDHC card

Power PoE (class 2)

Wireless (Wifi) /

Vandal resistant /

Digital Input/Output 1/1

PDF : https://cdn.barcodesinc.com/themes/barcodesinc/pdf/Axis/p13.pdf
