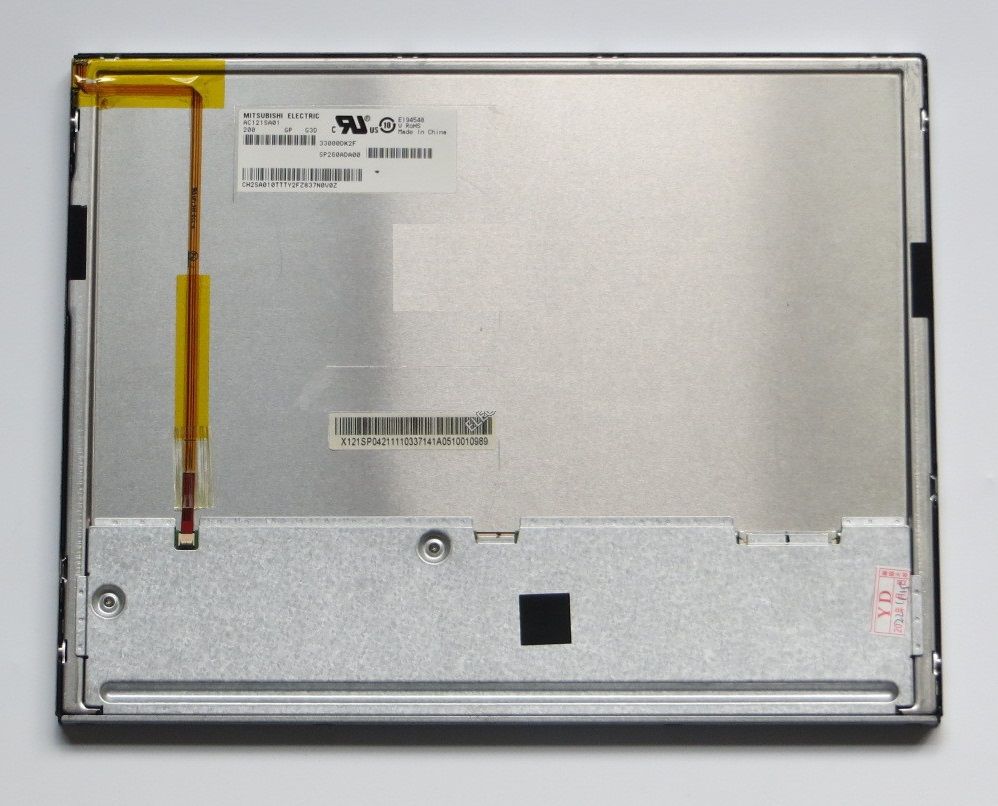

AC121SA01 12.1'' a-Si TFT-LCD Panel for Mitsubishi
2.305,68 TL
AC121SA01 12.1" a-Si TFT-LCD Panel for Mitsubishi
| Panel Brand | Mitsubishi |
| Panel Model | AC121SA01 |
| Panel Type | a-Si TFT-LCDPanel |
| Panel Size | 12.1" |
| Resolution | 800(RGB)×600 (SVGA) |
| Display Mode | TN, Normally White, Transmissive |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 450 cd/m2 (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Response Time | 4/12 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR?10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLED |
| Signal Interface | LVDS (1 ch, 6/8-bit) |
| Input Voltage | 3.3V (Typ.) |
| Other Name | ACL2LSA0L AC121SAO1 |
